The electronic descaler system

The salt-free and chemical-free anti-scale system

• Your eco-friendly solution to limescale and rust problems
• No salt, no chemicals, no magnetism
• Appropriate for pipe diameters from ¹/₂" to 40" (10-1000 mm)
• Fully cast in a protective acrylic case for optimal endurance
• Do-It-Yourself installation – no need to cut the pipes!
• Appropriate for all pipe materials – iron, copper, galvanized iron, stainless steel, PVC, plastic, PE-x, compound pipes, etc.
• Absolutely maintenance-free

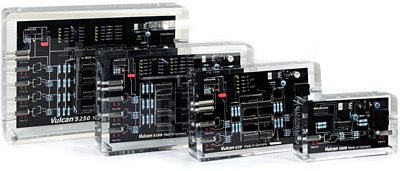

Vulcan Models and Sizes

Model	Max. Pipe Ø	Max. Water Capacity	Impulse Bands	Programs
Vulcan 3000	11/2"	13 gpm (3000 l/h)	2 x 1 m	1
Vulcan 5000	2"	35 gpm (8000 l/h)	2 x 2 m	1
Vulcan S10	3"	65 gpm (15 m3/h)	2 x 3 m	3
Vulcan S25	4"	130 gpm (30 m3/h)	4 x 3 m	5
Vulcan S50	5"	300 gpm (70 m3/h)	4 x 4 m	5
Vulcan S100	6"	530 gpm (120 m3/h)	6 x 4 m	10
Vulcan S150	8"	790 gpm (180 m3/h)	6 x 8 m	10
Vulcan S250	10"	1540 gpm (350 m3/h)	8 x 10 m	10
Vulcan S350	14"	2200 gpm (500 m3/h)	8 x 20 m	10
Vulcan S500	20"	3520 gpm (800 m3/h)	10 x 30 m	10
Vulcan X-Pro 1	30"	unlimited	12 x 25 m	10
Vulcan X-Pro 2	40"	unlimited	12 x 50 m	10
Overview of all technical details

Installation Notes

• For optimal water treatment Vulcan is best installed near the water meter or at the main water supply.

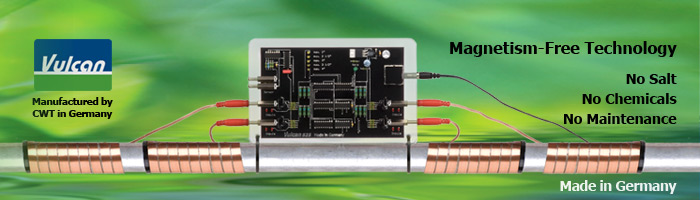

• The impulse bands can be wrapped around the pipe to the left, right or underneath the device. Note – Leave a distance of at least 1cm (min ~1/2’’) between the two impulse cables.
• Vulcan functions on any angle. It can be installed horizontally, vertically or at any other angle. Vulcan can also be wall-mounted if there is no space available on the pipe.
• If you cannot fit the impulse bands directly on the pipe, they can be partly wrapped around the main pipe and the distributor pipe.
